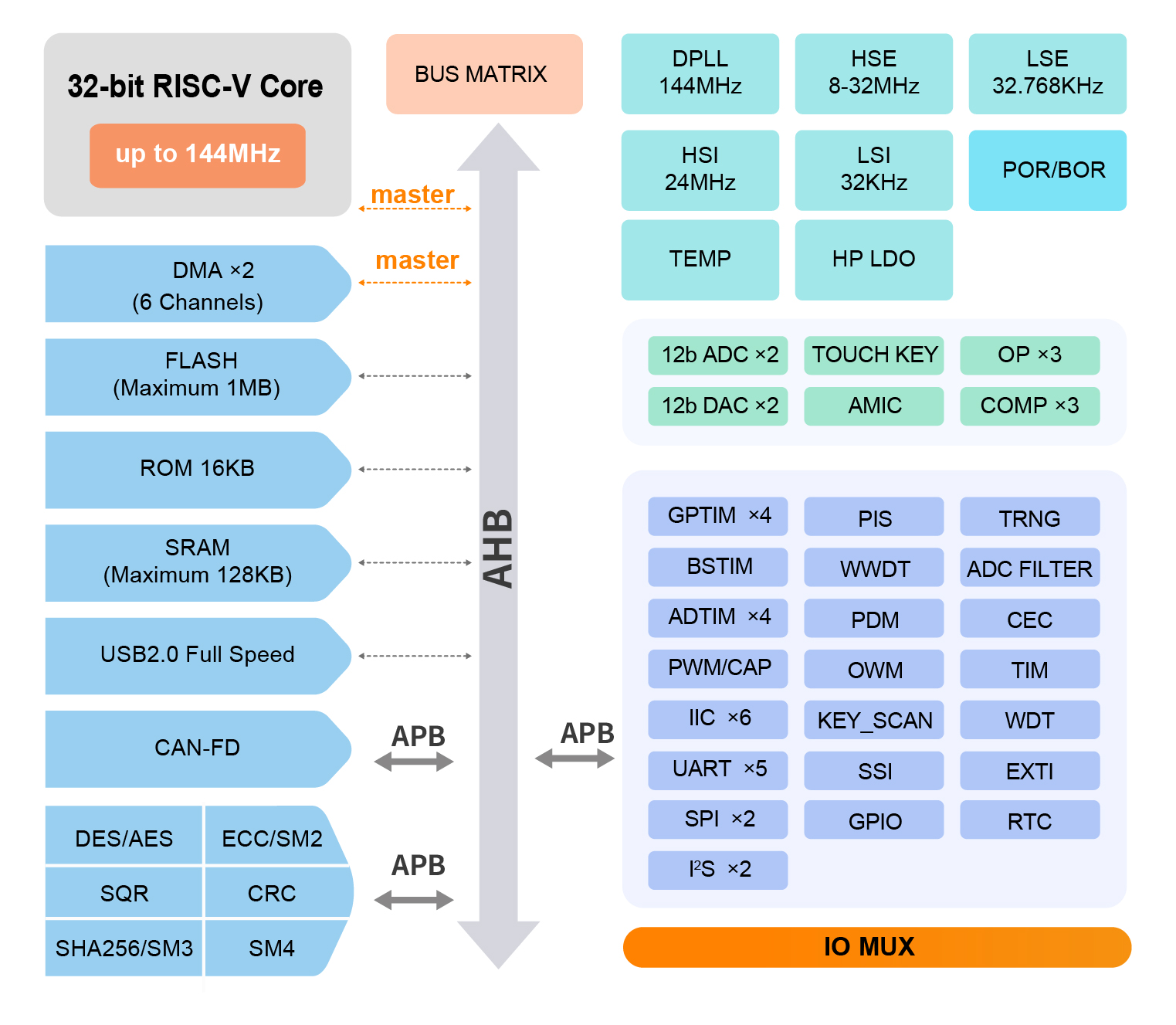

The LM6x is a 32-bit general-purpose microcontroller based on the RISC-V core operating at up to 144MHz frequency with FPU, two-cycle HW division DSP instruction, high-speed embedded memories (up to 1024KB of Flash memory and up to 128KB of SRAM), and an extensive range of enhanced peripherals and I/Os. The devices offer two 12-bit SAR-ADC/DAC, up to twelve timers, sixteen channels TK sensor, as well as standard and advanced communication interfaces. The LM6x suitable for a wide range of industrial applications such as Photovoltaic and energy Industry, motor drives, power monitor and alarm systems and so on.
| Part ID | Freq(MHz) | SRAM(KB) | Flash(KB) | GPIO | USB | Timer | UART | SPI | I²C | CAN | ADC | DAC | OP | COMP | TK | KBC | Temp | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM6050CID | 144 | 128 | 512 | 38 | 1 | 9 | 5 | 3 | 3 | CAN-FD | 10 | 1 | · | · | · | - | -40~85℃ | LQFP48 |
| LM6050DID | 144 | 128 | 512 | 52 | 1 | 9 | 5 | 3 | 3 | CAN-FD | 16 | 2 | · | · | · | - | -40~85℃ | LQFP64 |
| LM6050EID | 144 | 128 | 512 | 111 | 1 | 9 | 5 | 4 | 6 | CAN-FD | 16 | 2 | · | · | · | · | -40~85℃ | LQFP128 |
| LM6050IID | 144 | 128 | 512 | 83 | 1 | 9 | 5 | 4 | 6 | CAN-FD | 16 | 2 | · | · | · | · | -40~85℃ | LQFP100 |
| LM6050JID | 144 | 128 | 512 | 118 | 1 | 9 | 5 | 4 | 6 | CAN-FD | 16 | 2 | · | · | · | · | -40~85℃ | LQFP144 |
