Development Kits

LINKEDSEMI Development Kits


Suit to LE5010/5110

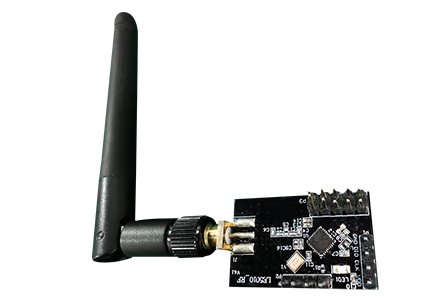

LE5010/5110 RF Board

The LE5010/5110 RF Board is an RF performance test and evaluation board based on the LE5010/5110 series product package.

Parameter specifications:
  • Board size length and width of 32*20 mm
  • Performance test:
    • TX transmission power up to 12+dbm;
    • RX receiving sensitivity -97dbm;
    • Bluetooth communication open distance of 250-300m;
  • 3.3V and GND pin power supply;
  • Support 4pin-SWD mode burning debugging;
  • One LED status indicator;
  • Support IOT expansion;


Suit to LE5010/5110

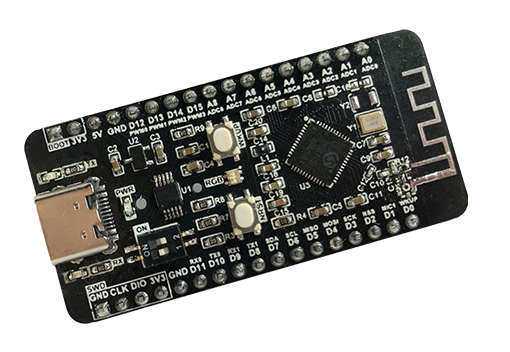

LE5010/5110 Solo Board

LE5010/5110 series product QFN48 package development learning board

Parameter specifications:
  • The length and width of the board is 25.4*53 mm;
  • The default Type-C port has 5V power supply, 5V/3.3V and GND pin power supply.
  • 25 external IO (including digital and analog IO);
  • 1 USB to TTL download burning port;
  • Support SWD mode four-wire burning debugging;
  • 1 reset button;
  • 1 BOOT button.
  • 1 LED power indicator;
  • 1 RGB status indicator;
  • 2 TX/RX status indicators;
  • PCB onboard antenna, black paint sinking process;
  • Support expansion combination interface, used to expand CAN bus, I2C, SPI, UART and other interfaces;


Suit to LE5030

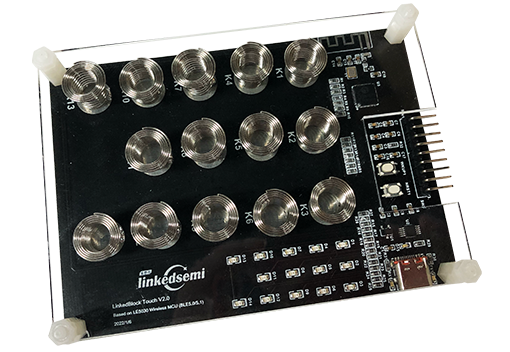

LE5030 Touch Board

The LE5030 Touch Board is a development learning kit based on the Lexicon LE5030 SoC.

Parameter specifications:
  • Board size is 75*104 mm,QFN48 package;
  • Spring button, covered with 1mm acrylic plate;
  • With 14-chTK, support 360° pulley, slider function;
  • With 14 LED status indicators;
  • Support three digit display resolution;
  • 16 external IO, support multiplexing;
  • 1 USB to TTL download burning port;
  • Support SWD mode four-wire burning debugging;
  • 1 reset button;
  • 1 BOOT button.
  • 1 LED power indicator;
  • 1 TX/RX status indicator;
  • Support expansion combination interface, used to expand CAN bus, I2C, SPI, UART and other interfaces;
